525W 530W Trina Solar Panel 535W 540W 545W Half Cell Panel Mono Half Cell

Name: 525W 530W Trina Solar Panel 535W 540W 545W Half Cell Panel Mono Half Cell
Brand: TSM-DEG18C.20
Price: 1 USD

Model Number : TSM-DEG18C.20

Place of Origin : Jiangsu, China

MOQ : 30pcs

Price : To be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200000 Watt/Watts per Week

Delivery Time : To be negotiated

Packaging Details : pallet

Brand Name : TSM-DEG18C.20

Certification : CGC，ISO9001:2015，TUV SUD，PV，CNAS，

Material : Monocrystalline Silicon

Cell size : 182*182mm

Panel Efficiency : 21.1%

Panel Dimensions : 2278*1134*30mm

Type : PERC, Half Cell

Certificate : TUV/CE

Encapsulant material : EVA/POE

Contact Now

Trina Solar Panel Paneles Solares Costo 525W 530W 535W 540W 545W Half Cells

Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, the Vertex comes with several innovative design features allowing high power output of more than 600W. Excellent temperature coefficient and low irradiation performance brings the greater power. Furthermore, benefit from square mono cells and high-density encapsulation technology, the efficiency of Vertex can reach up to 21.4%.

➤ Effectively reduce system BOS costs, achieve lower cost of electricity, and improve project profitability

➤ Lower first-year and year-to-year decay values, 30-year power generation warranty
➤ Compatible with mainstream system designs
➤ Higher return on investment

➤ Application of 210MM large wafer technology, and innovative three-split module technology
➤ Application of high density module technology, module efficiency increased to 21.0%
➤ Multi-Main-Barrier (MBB) technology to improve optical utilization and reduce internal current loss

➤ Excellent IAM and low light response performance verified by third parties
➤ Lower temperature coefficient (-0.34%) and lower operating temperature for more power generation
➤ Unique layout design provides greater resistance to shadow shading
➤ Double-sided power generation with up to 25% increase in back side power generation depending on the installation environment

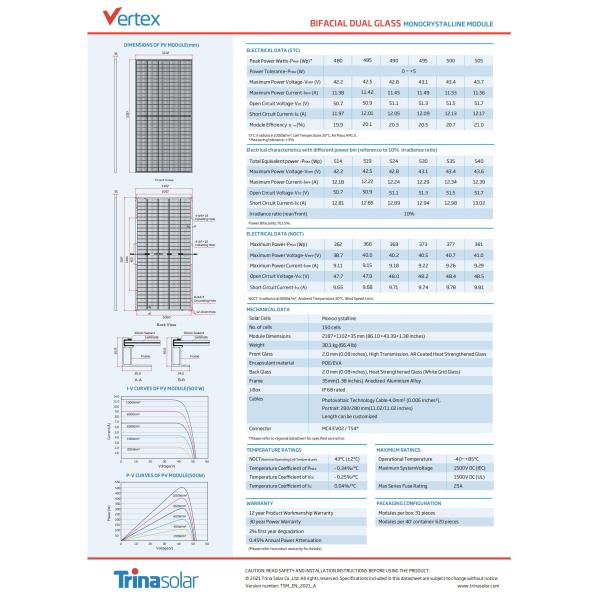

Model No.	480	485	490	495	500	505
Warranty
Product Warranty	12 Years
Power Warranty	30 Years of 85% Output Power
Electrical Data at STC
Maximum Power (Pmax)	480 Wp	485 Wp	490 Wp	495 Wp	500 Wp	505 Wp
Voltage at Maximum Power (Vmpp)	42.2 V	42.5 V	42.8 V	43.1 V	43.4 V	43.7 V
Current at Maximum Power (Impp)	11.38 A	11.42 A	11.45 A	11.49 A	11.53 A	11.56 A
Open Circuit Voltage (Voc)	50.7 V	50.9 V	51.1 V	51.3 V	51.5 V	51.7 V
Short Circuit Current (Isc)	11.97 A	12.01 A	12.05 A	12.09 A	12.13 A	12.17 A
Panel Efficiency	19.90%	20.10%	20.30%	20.50%	20.70%	21%
Power Tolerance (Positive)	1%	1%	1%	1%	1%	1%
	Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)	362 Wp	366 Wp	369 Wp	373 Wp	377 Wp	381 Wp
Voltage at Maximum Power (Vmpp)	38.7 V	40 V	40.2 V	40.5 V	40.7 V	41 V
Current at Maximum Power (Impp)	9.11 A	9.15 A	9.18 A	9.22 A	9.26 A	9.29 A
Open Circuit Voltage (Voc)	47.7 V	47.9 V	48 V	48.2 V	48.4 V	48.5 V
Short Circuit Current (Isc)	9.65 A	9.68 A	9.71 A	9.74 A	9.78 A	9.81 A
Temperature	43±2 °C
	Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range	40~85 °C
Temperature Coefficient of Pmax	0.34 %/°C
Temperature Coefficient of Voc	0.25 %/°C
Temperature Coefficient of Isc	0.04 %/°C
Maximum Ratings
Maximum System Voltage	1500 V
Series Fuse Rating	25 A
Material Data
Panel Dimension (H/W/D)	2187x1102x35 mm
Weight	30.1 kg
Cell Type	Bifacial
Cell Number	150
Glass Type	Anti-reflection Coating, Tempered
Glass Thickness	2 mm
Encapsulant Type	EVA
Frame Type	Anodized Aluminium Alloy
Junction Box Protection Class	IP 68
Connector Type	MC4
Cable Crossection	4 mm2

525W 530W Trina Solar Panel 535W 540W 545W Half Cell Panel Mono Half Cell

➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting technology
➤Ensured PID resistance through cell process and module material control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load

525W 530W Trina Solar Panel 535W 540W 545W Half Cell Panel Mono Half Cell

FAQ

Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
